System |
 |
|
 |
ISO
9001 compliant Quality Systems.
We control the Quality System currently complies to
ISO 9001 quality standards.
UL(E225596) Certification
IPC Class 3 Capability
ATC routinely builds PCBs to IPC Class 2 or Class 3,
as required, acceptability criteria.
Continual Improvement
Management Reviews of Quality Systems.
Corrective Action Systems.
Process Improvement Teams. |
 |
Visual
Inspection
All products are checked its cutting,shorts, patterns
width, faults,remained copper, pin hole,misplacements
by using automatic optical inspector. |
|
|
 |
Flying
Probe Testing
A flying probe test is available to test both
SMT and through-hole assembled printed circuit
boards for manufacturing defects. Being a fixtureless
test machine, and it is ideal for contacting leads
of fine pitch SMT components. |
|
 |

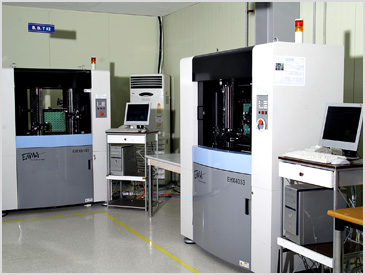

Bare
Board Electrical Testing
Electrical test process by JIG for larger quantities
products, and we examine all the pcb's compelete
conductibility. The testing reports can be sent
with pcbs to the customers when we ship the pcb
to the customers |
|
|
 |
Impedance
Control
After simulated the pcb boards, we check again
its Impedance ratio closely to meet its required
specification of end-users |
|
|
 |
Reliability
Testing
All finished PCBs are tested for its reliability
& functions with Micro Section Peel, Strength,
Solder and the others concerned testings. |
|
|
|
|
